Close MenuGoulds A2D33W SJE PumpMaster Pump Switch
Goulds A2D33W SJE PumpMaster Pump Switch
This mechanically-activated, wide-angle float switch is designed for direct control of pumps up to 1/2 HP at 120 VAC or up to 1 HP at 230 VAC. The SJE PumpMaster pump switch is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.
Applications
Normally open to pump down or empty in:
Non-potable water
Sewage
Features
For direct wiring in 120 VAC or 230 VAC within specified amp ratings
13 Amps maximum pump run current
85 Amps maximum pump start current
A2WT cable weight
7 to 36" adjustable pumping range
Mechanically activated with heavy duty contacts
Wide angle design allows the float switch to operate over a range of approximately 70o to 90o
Cable is flexible 16 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE)
Float is 3.05" diameter x 3.56" long, high impact, corrosion resistant, PVC housing for use in sewage and water up to 140?F
Includes standard mounting clamp and boxed packaging
UL Recognized for use in water and sewage
Goulds 3 HP 1 Phase 230V centrifugal Self-Priming Pump
Goulds 3 HP 1 Phase 230V centrifugal Self-Priming Pump is designed so that once the pump is primed it never needs priming again, even if water level drops below the end of the suction pipe. Pumping resumes once the water level rises above the end of the suction pipe. Specifically designed for lawn sprinkling, irrigation, air conditioning systems, heat pumps, water transfers and dewatering. Pump body has a cast iron casing. Pump has Stainless Steel wear ring for longer life and resistance to wear. Impeller is F.D.A. compliant and glass filled Noryl.
>>>> Application:
Water Systems
>>>> Features:
Shaft: Uses Motor shaft, 300 Series Stainless Steel
Shaft Seal: Standard Mech. Seal is Buna/Carbon/Ceramic/S.S, Casing "O"-Ring is Buna
Ports: 1-1/2" NPT Inlet x 1-1/2" NPT Discharge
HAYWARD SWIMCL CART/FILTER 100SF
SwimClear Single Element C100S with cartridge
Product Description
For both new pool and aftermarket installations SwimClear(TM) single element cartridge filters capture more dirt for superior water clarity without the need of supplemental media or backwashing, while the industry's lowest head loss reduces energy costs. SwimClear(TM) is also the easiest to service: the Easy-Lok(TM) ring design, comfort grip handles, and lowest lift height provide fast cleaning and element replacement.
Industry-leading hydraulic efficiency allows the pump to run at a lower speed or for less time, increasing energy savings
Easy-Lok(TM) ring design allows quick access to internal components for quick and simple maintenance
Recessed pressure gauge and manual air relief enables user to place head assembly upside down on pool pad, protecting the seal from contamination
2" x 2 1/2" union connections make installation and servicing fast and easy Dimension: 18 1/4 Width 30 1/2" Height
Turnover rate 8 hours 48,000 gallons
Flow rate 100GPM

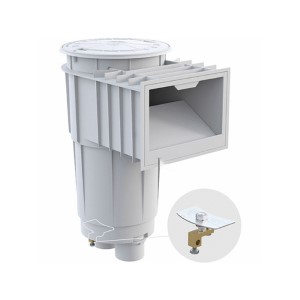

HAYWARD SKIMMER SKIM MASTER 2"
2" - 2.5" Plumbing! For concrete/plaster pools!
Skim-Master is a versatile, large capacity, automatic surface skimmer for residential or commercial gunite pools. It features durable corrosion-proof, unibody construction, adjustable deck collar and access cover, self-adjusting 8 in. weir, large debris basket and multiple plumbing connections for easier installation. Float valve is optional.
